With the rapid development of the automobile industry，Customer requirements for new energy vehicles are also rising.This forces various automobile manufacturers to have constant performance requirements for automobile parts.，especially tocar controllerSealing and waterproofing puts forward higher requirements.car controllerIt is the assembly controller of the electric vehicle power system and has the function of improving the vehicle's power performance, safety performance and economy.

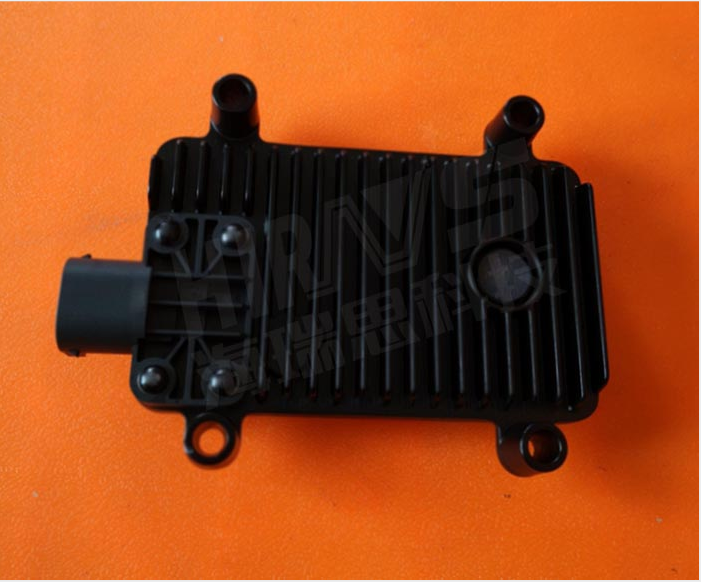

Product to be tested: Automotive controller

In practical applications, the cable intermediate joint of the automobile controller is a very weak link in the entire power transmission system. Due to the influence of the real environment, the cable intermediate joint is likely to be exposed to moisture, water vapor, etc. These conditions will cause accidents such as breakdown and explosion in the intermediate joint, thereby affecting the stable operation of the entire automobile controller.Nowadays, most car controllers are equipped with waterproof measures. Next, Hirays Technology will share with you a case of air tightness and waterproof testing of car controllers.

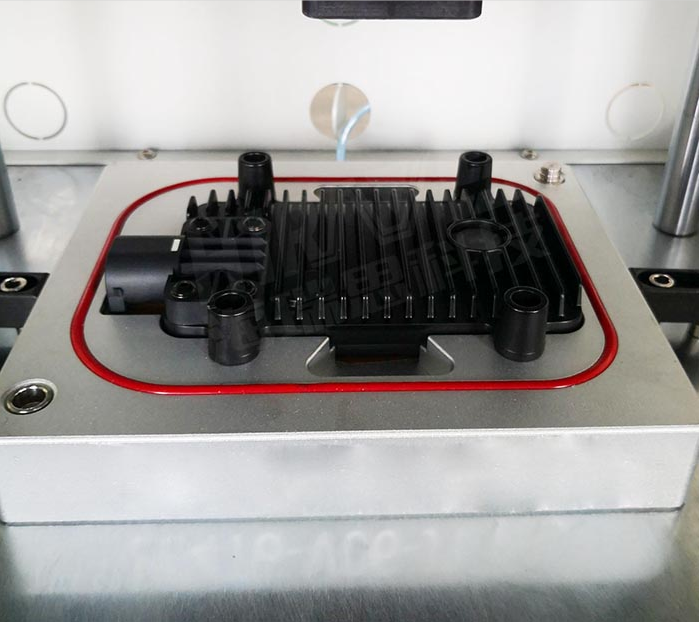

Automotive controller air tightness and waterproof testing fixture

According to the customer's requirements, the car needs to beController as a wholeconductIP67Waterproof levelFor testing, the following are the equipment and testing solutions used by Hirays Technology:

Equipment used: HiraysHCClassic series air tightness testing equipment

Testing plan: Indirect testing method, custom mold according to the structure of the controller, used to seal the controller.After placing the controller into the mold, press the start button on the instrument, and the upper mold of the controller will automatically press down to coincide with the lower mold. After sealing the controller, the instrument enters the test program. According to the set parameters (test pressure15KPA，Inflation time:6S,Stabilization time:8S，Test time:5S, leakage value:0.05KPA) The instrument inflates, stabilizes, and tests the controller, and detects the leakage of the product by monitoring changes in air pressure. The controller system automatically determines the leakage value exceeds the upper limit or fails to reach the test pressure.NG。

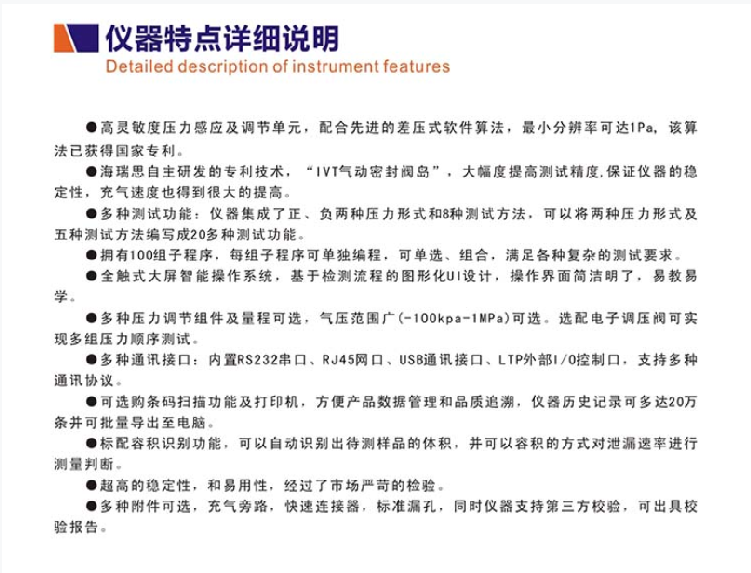

Hai RuisiHCClassic Series Air Tightness TestDetailed description of instrument features

The method of testing using air tightness and waterproof testing equipment is highly practical.It greatly improves the functionality of the car controller, ensures its effectiveness and efficiency, and is suitable for widespread promotion.

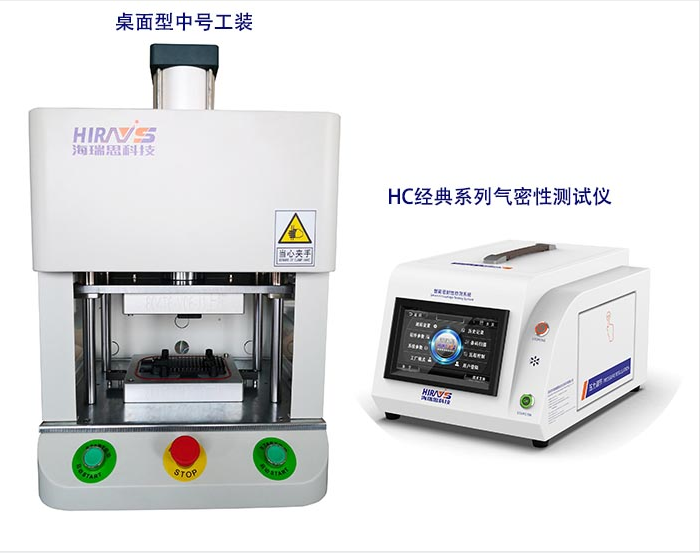

Hai RuisiHCClassic series air tightness testing equipment

Hiraysi has always adhered to the business philosophy of technological leadership as its core and"High quality, high service"As a business policy, we constantly surpass ourselves and innovate. Many technologies are at the first-class level in China.The development and utilization of its air tightness detection and waterproof detection technology has brought about a revolution in air tightness detection technology for similar domestic products.。
